Stand Alone Pancake Spoolers
ALPHASPOOL stand alone spoolers efficiently convert pancake rolls of film and tapes to level wound spools or bobbins with a precise computer controlled traversing mechanism and sensitive tension control.
Read more
Get in touch
The cantilevered unwind and rewind shafts provide quick roll change whilst the servo control systems ensure precise spooling. All Alpha spoolers are of heavy duty construction for long life.
Pancake rolls may be produced on a slitter rewinder such as an ALPHALAB TWIN slitter or on a single knife log slitter.

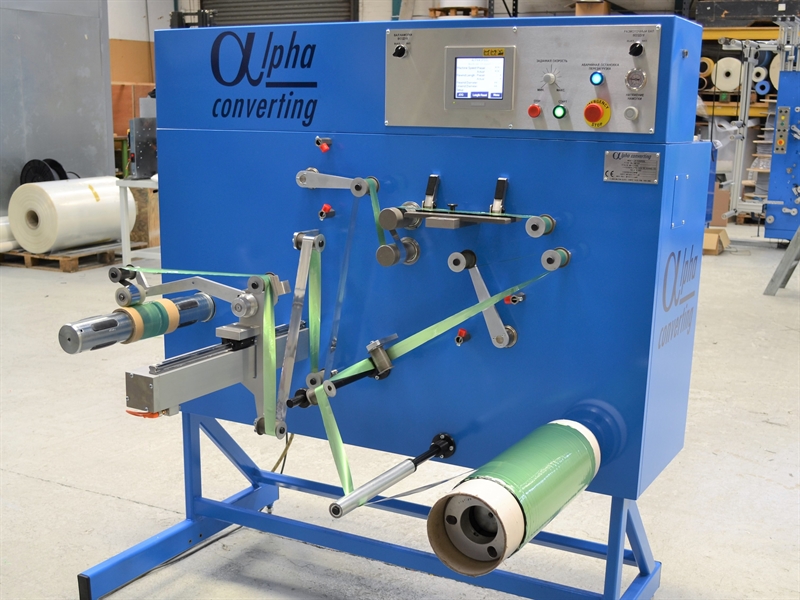

Examples shwon:
- Bench top model for pancake to spool conversion of open faced adhesive foam.
- Narrow width light weight tapes are spooled with first class control over the rewinding and oscillating parameters which ensures excellent roll density and profile control.
- Heavy duty spooler for finerlift product winding direct from pancake rolls to provide for long production runs from level or traverse wound rolls.
Standard Features
- Cantilevered unwind
- Auto stopping at unwind core
- Precise spooling tension with closed loop control
- Precise tape lay down with computerised traversing
- Splice table with web clamp
- Touch screen control with recipe system
- Quality engineered and manufactured in the UK
Optional
- Precision pneumatic unwind brake or AC drive
- Choice of rewind shafts for cores or spools
- Quick change rewind shafts
- Guide wheels
- Guide fingers
- Filament winding
- Powered roll ejection
- Low tack roll coverings for exposed adhesives
- Multiple tension zones
- Centre guided web
- Clean room installation
- Gap mode winding (non contact)
- Peel off roll (unwind only)
Typical Specification
| ALPHASPOOL Stand Alone (Pancake to Spool) | ||
| Tape width | 0.5 to 50 mm | 0.02 to 2 inches |
| Tape thickness | 10µm to 10 mm | 0.4mils to 0.5 inches |
| Unwind Roll diameter | 450 to 1000 mm | 18 to 40 inches |
| Unwind Core diameter | 76 or 152 mm | 3 or 6 inches |
| Spool diameter | To 1000 mm | To 40 inches |
| Spool width | 100 to 500 mm | 4 to 20 inches |
| Speed | 400 m/min | 1,200 ft/min |
Typical Materials
| Film - OPP, PET, PE, PVC | Medical | Foam tapes |
| Non-woven | Strapping tapes | Label stock |
| Self adhesive | Brass | Aluminium |
| Fingerlift tapes | Protection tapes | - |
